RS2 Membrane Dehumidifier
£20.69

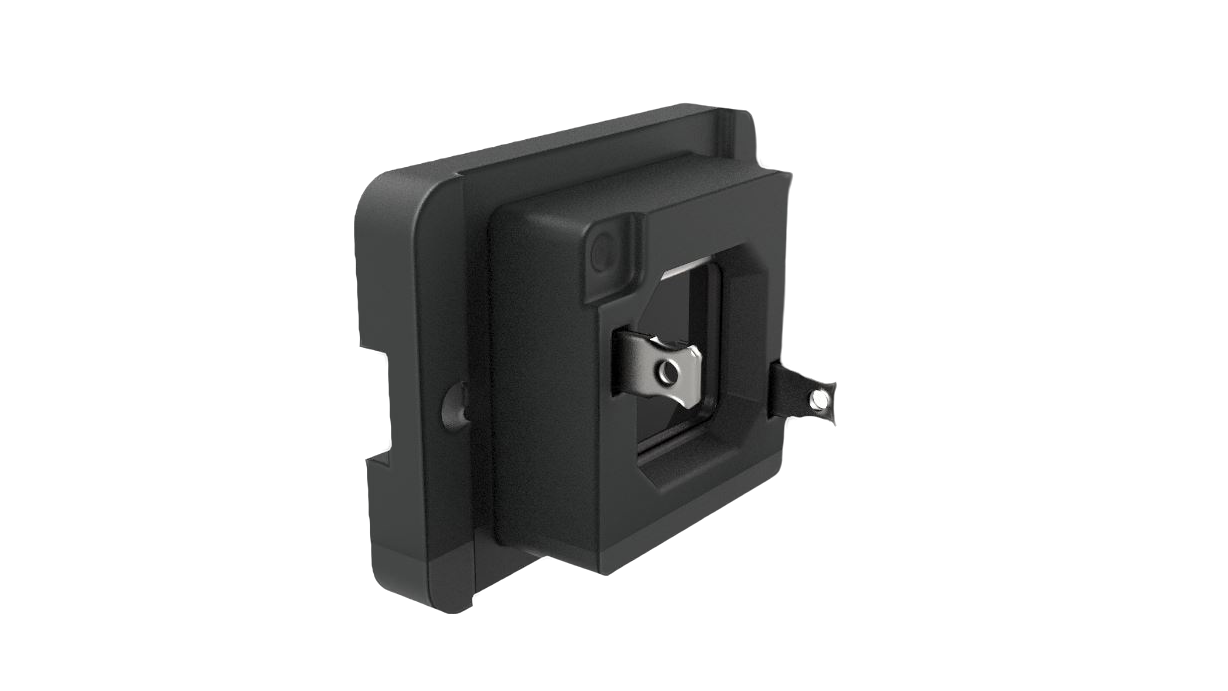

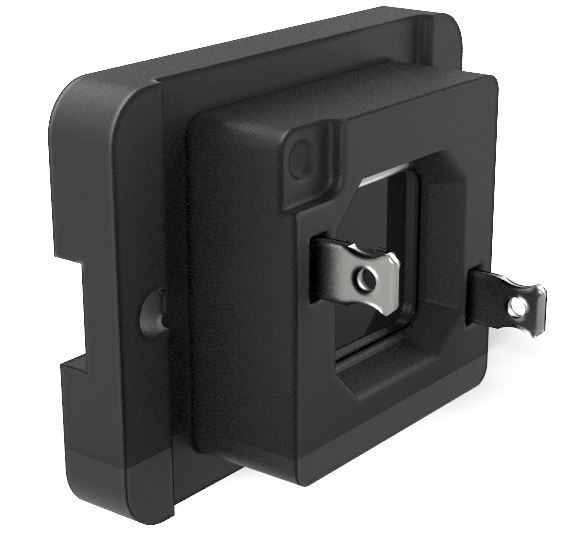

Type RS2 are flat membrane dehumidifiers suitable for enclosures up to five litres. They have push connectors and mount on the outside of the enclosure. They measure 21 x 28 x 13.5mm. A suitable 3V dc power supply is required.
Scroll down for a recommended power supply and accessories.
Read our documentation here
Type RS2 are flat membrane dehumidifiers suitable for enclosures up to five litres. They have push connectors and mount on the outside of the enclosure. They measure 21 x 28 x 13.5mm. A suitable 3V dc power supply is required.
Membrane Size Comparison Chart
| Small membrane comparison | PD4/PD5* | PD2/PD3** | RD3/RD4*** | RS1/RS2**** | MDL-3 | MDL-5 | MDL-7 |
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|
| Dehumidifying (grams/day) | 0.042 | 0.084 | 0.084 | 0.21 | 4 | 8 | 16 |
| Applicable volume | <1 litres | <2 litres | <2 litres | <5 litres | <0.5m3 | <1m3 | <2m3 |
| Element terminal voltage | 3V DC | 3V DC | 3V DC | 3V DC | 3V DC | 3V DC | 3V DC |
| Power consumption (W) | 0.06 | 0.08 | 0.08 | 0.22 | 2 | 3 | 4 |
| Dimensions (mm) | Ø 17 x 11 | Ø 17 x 11 | 30 x 24 x 5.5 | 21 x 28 x 13 5 | 96 x 63 x 2.3 | 96 x 88 x 2.3 | 116 x 108 x 2.3 |
| Weight (g) | 0.9 | 1.8 | 1.8 | 3.4 | 20 | 25 | 50 |
| Operating temperature | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C |
| Notes | * Connector PD4 soldered PD5 push |
** Connector PD2 soldered PD3 push |
*** Mounting RD3 outside RD4 inside |
**** Connector RS1 Soldered RS2 Push |
Push connector with 50cm cable supplied |
Push connector with 50cm cable supplied |
Push connector with 50cm cable supplied |
Additional information
| Weight | .004 kg |
|---|---|
| Dimensions | 2.8 × 2.1 × 1.35 cm |
| Country | Japan |
| HS code | 84213925 |
