PD2 Membrane Dehumidifier

Name: PD2 Membrane Dehumidifier
SKU: PD2
Availability: InStock

£18.93

Rosahl PD2 are screw-in membrane dehumidifiers suitable for dehumidifying enclosures up to 2 litres. The PD2 has soldered connectors. It uses a fine pitch M12 fixing (M12 x P0.5). The flange diameter is 17mm and length 11mm and no gasket is supplied. A 3V dc power supply is required.

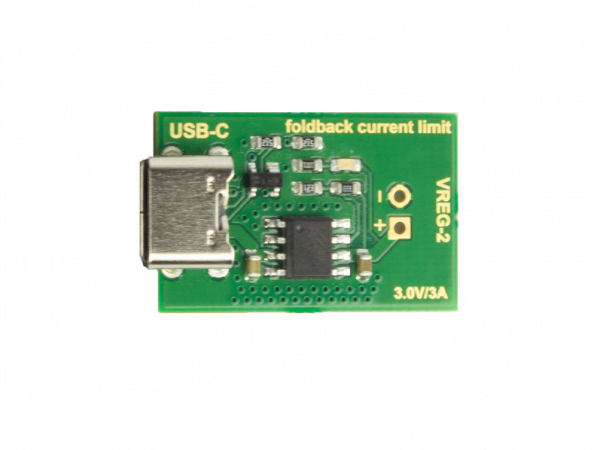

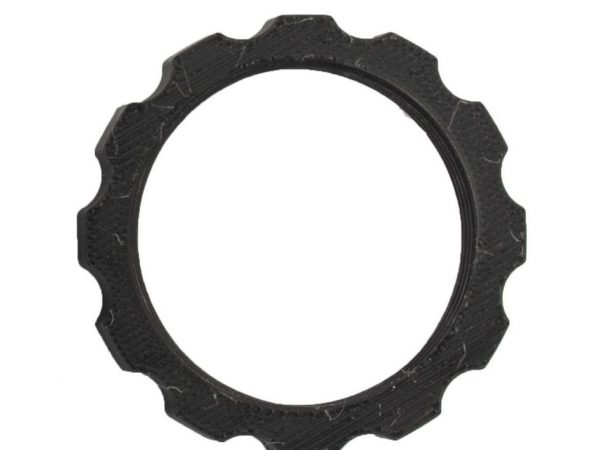

Don’t forget the recommended power supply and locking ring. Scroll down for details.

SKU: PD2 Categories: Membranes, Screw in membranes Tag: M12 Screw in dehumidifiers

Documentation
Description
Additional information
Reviews (0)

Read our documentation here

Rosahl PD2 screw-in membrane dehumidifiers suitable for dehumidifying enclosures up to 2 litres. The PD2 has soldered connectors. It has a fine pitch M12 fixing (M12 x P0.5). The flange diameter is 17mm and length 11mm and no gasket is supplied. A 3V dc power supply is required. Optional locking rings are available of required.

Membrane Size Comparison Chart

Small membrane comparison	PD4/PD5*	PD2/PD3**	RD3/RD4***	RS1/RS2****	MDL-3	MDL-5	MDL-7

Dehumidifying (grams/day)	0.042	0.084	0.084	0.21	4	8	16
Applicable volume	<1 litres	<2 litres	<2 litres	<5 litres	<0.5m3	<1m3	<2m3
Element terminal voltage	3V DC	3V DC	3V DC	3V DC	3V DC	3V DC	3V DC
Power consumption (W)	0.06	0.08	0.08	0.22	2	3	4
Dimensions (mm)	Ø 17 x 11	Ø 17 x 11	30 x 24 x 5.5	21 x 28 x 13 5	96 x 63 x 2.3	96 x 88 x 2.3	116 x 108 x 2.3
Weight (g)	0.9	1.8	1.8	3.4	20	25	50
Operating temperature	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C
Notes	* Connector PD4 soldered PD5 push	** Connector PD2 soldered PD3 push	*** Mounting RD3 outside RD4 inside	**** Connector RS1 Soldered RS2 Push	Push connector with 50cm cable supplied	Push connector with 50cm cable supplied	Push connector with 50cm cable supplied
