MDL-3 Flat Membrane Dehumidifier

Name: MDL-3 Flat Membrane Dehumidifier
SKU: MDL-3
Availability: InStock

£145.69

The MDL-Series are thin flat membrane dehumidifier 2.3mm deep. The MDL-3 membranes are suitable for enclosures up to 500 litres. They have push connectors and normally mount on the inside of the enclosure. They measure 88 x 63 x 2.3. A suitable 3V dc power supply is required.

Scroll down for a recommended power supply and accessories.

SKU: MDL-3 Category: Membranes

Documentation
Description
Additional information
Reviews (0)

Read our documentation here

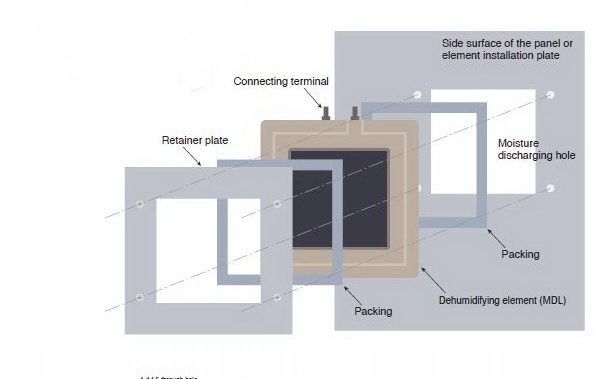

The MDL Series is a thin flat membrane dehumidifier 2.3mm deep and available in three models according to enclosure size. Volumes over 2m³ can be controlled using two or more membranes. A 3V dc current limiting power supply is required. MDL models are normally installed inside the enclosure.

Membrane Size Comparison Chart

Small membrane comparison	PD4/PD5*	PD2/PD3**	RD3/RD4***	RS1/RS2****	MDL-3	MDL-5	MDL-7

Dehumidifying (grams/day)	0.042	0.084	0.084	0.21	4	8	16
Applicable volume	<1 litres	<2 litres	<2 litres	<5 litres	<0.5m3	<1m3	<2m3
Element terminal voltage	3V DC	3V DC	3V DC	3V DC	3V DC	3V DC	3V DC
Power consumption (W)	0.06	0.08	0.08	0.22	2	3	4
Dimensions (mm)	Ø 17 x 11	Ø 17 x 11	30 x 24 x 5.5	21 x 28 x 13 5	96 x 63 x 2.3	96 x 88 x 2.3	116 x 108 x 2.3
Weight (g)	0.9	1.8	1.8	3.4	20	25	50
Operating temperature	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C	-10 to +50C
Notes	* Connector PD4 soldered PD5 push	** Connector PD2 soldered PD3 push	*** Mounting RD3 outside RD4 inside	**** Connector RS1 Soldered RS2 Push	Push connector with 50cm cable supplied	Push connector with 50cm cable supplied	Push connector with 50cm cable supplied
