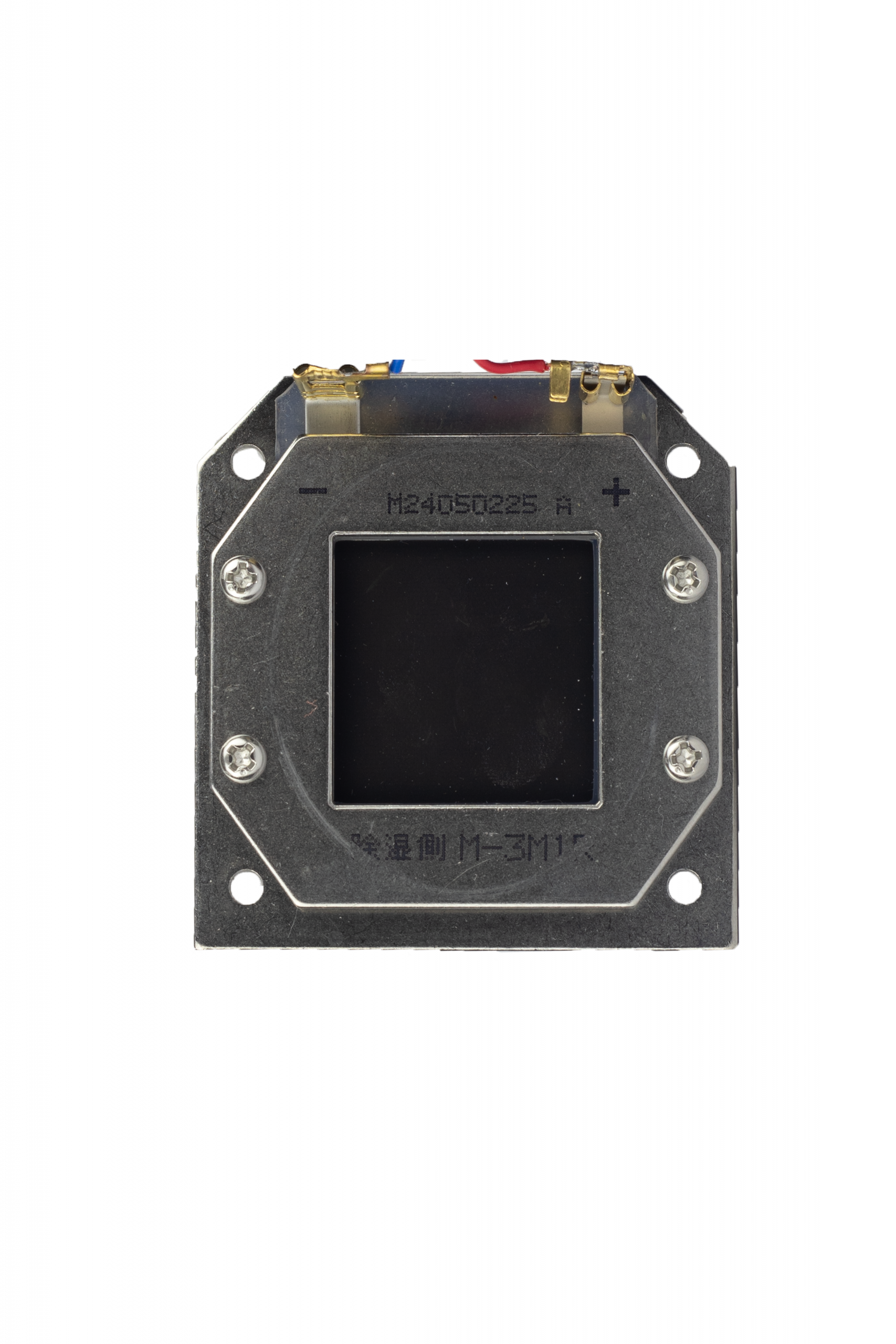

M-3M1R Membrane Dehumidifier
£92.88
With seven models the new Rosahl M Series membranes are mounted in pre-drilled stainless steel frames and supplied with a pre-formed gasket. The M-3M1R is suitable for dehumidifying enclosures up to 350 litres. They are normally installed inside the enclosure.
Scroll down for a recommended power supply and accessories.
Read our documentation here
With seven models the new Rosahl M Series membranes are mounted in pre-drilled stainless steel frames and supplied with a pre-formed gasket. and suitable for dehumidifying enclosures up to 4000 litres. They are normally installed inside the enclosure.
Membrane Size Comparison Chart
| Series | M-1J1R | M-2J1R | M-3M1R | M-3J1R | M-5J1R | M-7J1R | M-10J1R |
|---|---|---|---|---|---|---|---|
 |
|||||||
| Dehumidifying (grams/day)*1 | 1 | 2.0 | 2.9 | 4 | 8 | 16 | 29 |
| Applicable volume m³ *2 | 0.125 m³ | <0.25 m³ | <0.35 m³ | <0.5 m³ | <1 m³ | <2 m³ | <4 m³ |
| Element voltage | 3V DC | ||||||
| Power consumption (W) *3 | 1.0 | 1.5 | 2 | 2 | 3 | 6 | 12 |
| Dimensions (mm) *4 | 52.5 x 50 x 16.5 | 67.5 x 50 x 16.5 | 65 x 62 x 16.5 | 74 x 58 x 16.5 | 89 x 84 x 116.5 | 117 x 105 x 17.5 | 162.5 x 155 x 17.5 |
| Weight (g) | 70 | 85 | 90 | 95 | 150 | 340 | 580 |
| Operating temperature | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C |
| Terminals | Push connector | Push connector | Push connector | Push connector | Push connector | Push connector | Push connector |
Additional information
| Weight | 0.114 kg |
|---|---|
| Dimensions | 10 × 3 × 10 cm |
| Country of Origin | Japan |
| HS code | 84213925 |
