Achieve Long-Term Humidity Stabilisation
Passive 10-Year Humidity Control for Outdoor Enclosures
Drykeeper provides long-term, maintenance-free moisture stabilisation, ensuring optimal performance in challenging environments.
What is Drykeeper?
Drykeeper is a passive, long-life humidity control solution for sealed and unventilated enclosures.
DryKeeper uses a maintenance-free polymer absorber with a typical service life of up to 10 years. It buffers internal humidity by absorbing water vapour when relative humidity is high and releasing it when conditions dry, helping to stabilise enclosure humidity in the 50–60% RH range.
By reducing the absolute humidity in the enclosure, DryKeeper lowers the dew point, preventing condensation on internal surfaces even as temperatures fall.
Why Choose Drykeeper?
DryKeeper stabilises humidity in sealed and unventilated outdoor enclosures to help prevent condensation on electrical and optical components.
Unlike silica gel and other conventional desiccants, which passively absorb moisture until they become saturated, DryKeeper acts as a humidity buffer for up to ten years. It absorbs water vapour when relative humidity (RH) rises and releases it as RH falls, helping to stabilise enclosure humidity in the 50–60% RH range without replacement or regeneration.
By reducing the absolute humidity inside the enclosure, DryKeeper lowers the dew point, preventing condensation even during temperature fluctuations. This creates a consistent, optimal internal environment without the need for electricity or batteries.
Discover how DryKeeper’s environmentally friendly technology delivers maintenance-free humidity control and supports long-term reliability in sealed enclosures.
Efficient Moisture Absorption
Drykeeper’s advanced polymer technology absorbs excess moisture, ensuring a stable environment.
Long-Lasting Performance
With a lifespan of up to ten years, Drykeeper provides reliable humidity control without maintenance.
No Maintenance Required
Enjoy hassle-free operation with Drykeeper’s maintenance-free design.
Where is Drykeeper used?
Drykeeper is ideal for preventing condensation in non-ventilated outdoor enclosures such as electrical control panels, signalling systems, and surveillance equipment. With its wide operational temperature range (–30°C to +90°C) and ability to regenerate below 80°C, it’s perfect for use in demanding environments.
Common Applications Include:
-

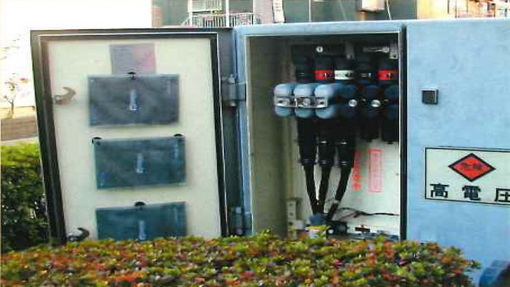

Electrical control and distribution panels
-
Emergency roadside telephones
-
Railroad crossing gates
-

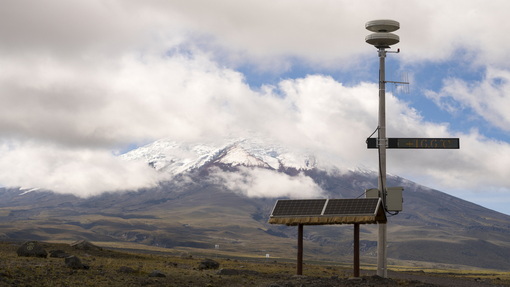

Remote monitoring systems
-
Surveillance cameras and CCTV
-
Speed limit display panels
-
Solar PV junction boxes and connection boxes
-

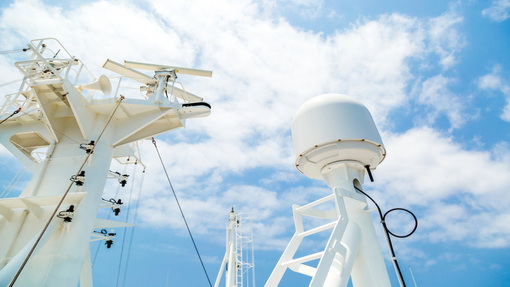

Marine electronics
-
Energy storage and power conversion systems (PCS)
How Does Drykeeper's Moisture Stabilisation work?
Drykeeper uses a reversible absorption process:
-
Absorbs moisture when humidity is high.
-
Releases moisture when humidity drops.

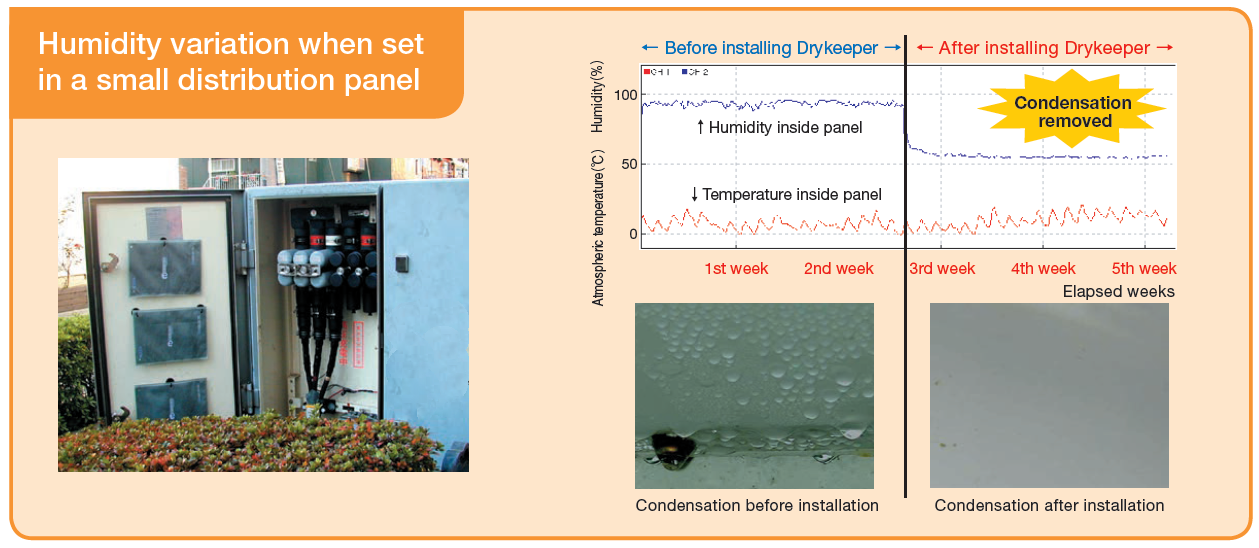

This unique cycle maintains a stable environment, preventing condensation and protecting sensitive equipment. The product continues to function over extended periods, providing long-term, passive humidity control in a wide range of conditions.
How do I select Drykeeper for my application?
The selection process is simple and we are are preparing simple tables to guide you. One for volumes under five litre and one larger volumes. Both operate in the same way, Being:
- Set the enclosure volume by entering the three dimensions in mm
- Enter the maximum temperature (°C) and relative humidity
- Enter the minimum temperature (°C) and relative humidity
- Add the safety factor you need 150%, 200% or 300%
- Read off the size and number of Drykeeper sheets needed
Humidity Release
Features
How Does it Compare?
Quick and Easy Installation
- Peel and stick: Attach Drykeeper inside the enclosure using the adhesive hooks provided.
- Place condensation indicator: Position it in the enclosure to monitor moisture levels.
- You’re Done: The indicator will change color when condensation occurs, signaling if Drykeeper is experienced condensation.
Drykeeper Mini: Compact and Powerful
Key Features:
-
Lasts up to 10 years outdoors
-
No maintenance required
-
Ideal for remote, hard-to-maintain applications
-
Operates in temperatures from -30°C to +80°C
-
Outperforms silica gel
-
Freezes without loss of performance
Easy Installation:
Drykeeper Mini comes with an adhesive backing for easy attachment to enclosures. It can be applied to curved surfaces and a range of materials, including ABS, polycarbonate, FRP, and metals (SUS, Al, steel).
Application Examples:
- Surveillance cameras & CCTV
- Speed limit display panels
- Small electrical connection boxes
- Instrumentation
- Outdoor lamps
Simply lay down a sheet to solve condensation problems
Drykeeper Resources
Drykeeper Home page (current page)
Feature and benefits of Drykeeper
Blog post-Drykeeper Vs Silica gel/desiccants
White paper (under development)
Achieve Perfect Humidity Control
Take Control of your Environment Today
Don’t let fluctuating humidity levels compromise your equipment’s performance. With Drykeeper, you can ensure a stable and optimal environment effortlessly. Visit our website to learn more about how Drykeeper can benefit your operations or purchase directly to experience the difference. Join countless satisfied customers who trust Drykeeper for their humidity control needs.
Westside International Ltd is an authorised distributor of Furukawa Electric’s Drykeeper products
