Installation Guide for VREG2 USB-C Power Adapter Board
Standard VREG2 Power Adapter Board
The USB-C VREG2 Series power adapter boards convert a 5V USB supply to a 3V DC/ 3000mA current limiting fold-back output. They are suitable for the Rosahl micro-dehumidifiers PD, RD, RS, M-1J, M-2J, M-3M, M-3J and MDL-3 membranes. Three configurations are available, unwired and two prewired versions
Prewired VREG2 used with mounting kits
The VRS and VRD prewired VREG2 boards are primarily for installation in the membrane installation kits and the cables are sized for this purpose. Please check their suitability before ordering them for other installations.
VRS-330 uses the same VREG2 circuit board but includes prewired 60mm output cables and connectors for use with the M1J, M2J, M3M and M3J membranes in the M-Series mounting kits.
VRD-330 also uses the same VREG2 circuit board and includes prewired 40mm output cables and connectors for use with the MDL-3 in the MDL-Series mounting kits.
VREG2 mounting accessories
The VREG2 power adapter boards are integrated within the MDL and M-Series mounting kits. For stand alone applications, three simple mounting bases are:

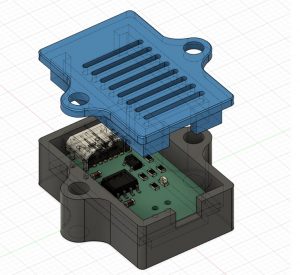

This simple VR2-FMC simple base-mounting module accepts the VREG2 USB-C power adapter board designed for use with the PD, RD, RS Series and the M-Series M-1J, M-2J M-3M and M-3J and MDL-3 membranes.
The VR2-PMC is a simple 22mm barrel mounting module for the VREG2 USB-C power adapter board. It works with the PD, RD, RS Series and the M-Series M-1J, M-2J M-3M and M-3J and MDL-3 membranes.
The VR2-RSM offers a compact mounting solution for the RS Series dehumidifier membranes. The 35mm barrel mounting holds both the dehumidifier and VREG power supply within single housing. It is also available fully assembled for ease of installation as the VR2X-RSM.
VREG2 Technical Information
Fold-Back Current Limiting
The dehumidifier membranes can absorb humidity if no supply voltage is present. This moisture needs to be discharged on startup and can lead to a higher inrush-current than the regular operating current. During startup the supply voltage should not fall below 2V, otherwise moisture discharge is not possible or significantly delayed. The use of fold-back current limiting regulates the output current to maintain the required minimum supply voltage for the dehumidifier membranes.
The RT9059 voltage regulator used on the USB-C-VREG2 contains an independent current limit and the short circuit current protection to prevent unexpected applications. The current limit monitors and controls the pass transistor’s gate voltage, limiting the output current to 3.1 A (typical). When the output voltage is less than 0.2v, the short circuit current protection starts the current fold back function and maintains the loading current at maximum 1.8A. The output can be shorted to ground indefinitely without damage.
Technical Parameters
VREG 2, VRS-300, VRD300
| Symbol | Parameter | Condition | Min | Typical | Max | Units |
| VIN | Input voltage | USB-C | 3.3 | 5 | 5.5 | V |
| VOUT | Output Voltage | 3.0 | V | |||
| IOUT | Output current [1] | Rated | 3000 | mA | ||
| Output accuracy | 85°C | 1.5% | ||||
| IQ | Quiescent current | 0.6 | mA | |||
| Current limiting | Fold-back | |||||
| T | Operating temp. | -40° | +85° | C | ||
| Dimensions | 25 x 16 x 4 | mm |
Note
[1]: The voltage regulator of the USB-C-VREG2 is specified for a rated output current of 3000mA. However, with a 5V USB-C supply voltage this leads to a thermal power dissipation of 6W. Continuous operation at 3000mA would hence require cooling. The intended application of the USB-C-VREG2 is with a Rosahl M-series dehumidifier membrane e.g., M-1J1R, M-2J1R, M-3M1R, M-3J1R and MDL-3 which draw high inrush.
USB Power Supply
The VREG-2 is not an official USB-C PD (Power Delivery) sink device and may not be recognised by some PD or special purpose USB-C power supplies. In the event of a problem, try it with a standard 15W USB power supply.
Cautions:
Prior to mounting in an enclosure, the VREG2 power adapter boards may be damaged by electro-static discharge (ESD) and should be handled appropriately trained personnel.
The VREG2 should not be operated without protection circuitry if connections to the product’s pin header rows are longer than 3m.
Manufacturer in the European Union
Declaration of RoHS available
Declaration of REACH Directive available
Version 2.2
