PD5 Membrane Dehumidifier
£10.34

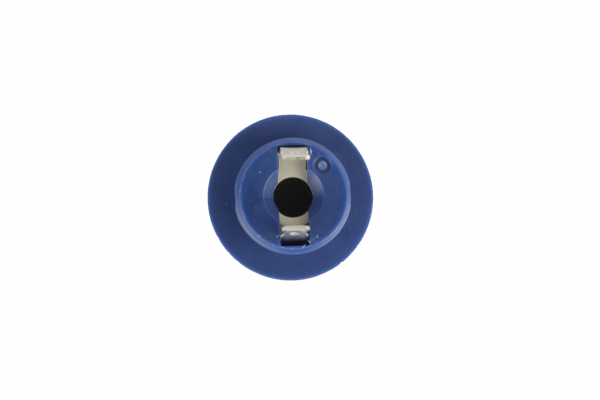

Types PD4 and PD5 are a screw-in membrane dehumidifiers suitable for dehumidifying enclosures up to 1 litre. The PD4 has soldered connectors and PD5 has push connectors. Both models use a fine pitch M12 fixing (M12 x P0.5). The flange diameter is 17mm and length 11mm and no gasket is supplied. A 3V dc power supply is required. Optional locking rings are available if required.
Don’t forget the recommended power supply and locking ring. Scroll down for details.
Read our documentation here
Types PD4 and PD5 are a screw-in membrane dehumidifiers suitable for dehumidifying enclosures up to 1 litre. The PD4 has soldered connectors and PD5 has push connectors. Both models use a fine pitch M12 fixing (M12 x P0.5). The flange diameter is 17mm and length 11mm and no gasket is supplied. A 3V dc power supply is required. Optional locking rings are available if required.
Membrane Size Comparison Chart
| Small membrane comparison | PD4/PD5* | PD2/PD3** | RD3/RD4*** | RS1/RS2**** | MDL-3 | MDL-5 | MDL-7 |
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|
| Dehumidifying (grams/day) | 0.042 | 0.084 | 0.084 | 0.21 | 4 | 8 | 16 |
| Applicable volume | <1 litres | <2 litres | <2 litres | <5 litres | <0.5m3 | <1m3 | <2m3 |
| Element terminal voltage | 3V DC | 3V DC | 3V DC | 3V DC | 3V DC | 3V DC | 3V DC |
| Power consumption (W) | 0.06 | 0.08 | 0.08 | 0.22 | 2 | 3 | 4 |
| Dimensions (mm) | Ø 17 x 11 | Ø 17 x 11 | 30 x 24 x 5.5 | 21 x 28 x 13 5 | 96 x 63 x 2.3 | 96 x 88 x 2.3 | 116 x 108 x 2.3 |
| Weight (g) | 0.9 | 1.8 | 1.8 | 3.4 | 20 | 25 | 50 |
| Operating temperature | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C | -10 to +50C |
| Notes | * Connector PD4 soldered PD5 push |
** Connector PD2 soldered PD3 push |
*** Mounting RD3 outside RD4 inside |
**** Connector RS1 Soldered RS2 Push |
Push connector with 50cm cable supplied |
Push connector with 50cm cable supplied |
Push connector with 50cm cable supplied |
Additional information
| Weight | .001 kg |
|---|---|
| Dimensions | 1.7 × 1.1 × 1.2 cm |
| Country | Japan |
| HS code | 84213925 |
1 review for PD5 Membrane Dehumidifier
Only logged in customers who have purchased this product may leave a review.
Houghton –
I have an enclosed 3D printer, and moisture buildup was a real problem. This compact dehumidifier fits perfectly inside the enclosure, and it keeps the humidity levels perfectly stable. No more warping or stringing! Highly recommended for anyone with an enclosed setup.
